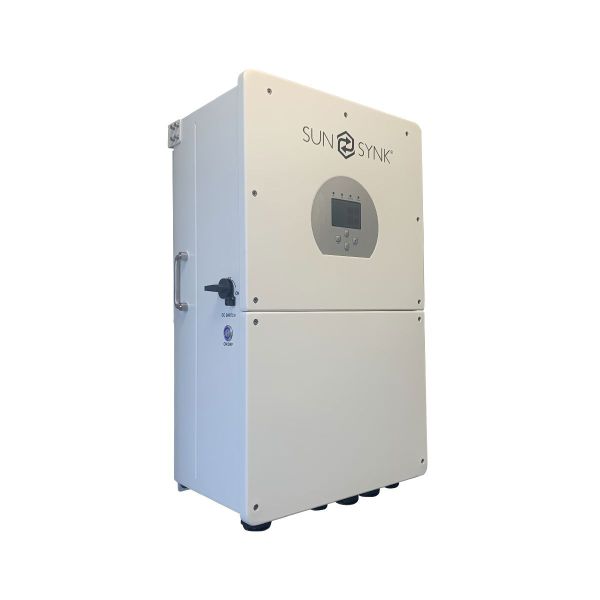

Description We have taken the Sunsynk Hybrid Inverter to the highest level. Our new Sunsynk MAX is the most powerful low-voltage inverter in the world, achieving a maximum output power of 16kW and battery charge current of 275A. This power management tool allows the user to hit those ‘parity’ targets by managing power-flow from multiple sources such as solar, mains power (grid) and generators, and then effectively storing and releasing power as and when utilities require. Interactive Supporting Wi-Fi or GSM monitoring Visual power flow screen Parallel / multi invert function grid-tied and off-grid Compatible Compatible with main electrical grid voltages or power generators Self-consumption and feed-in to the grid Auto restart while AC is recovering Auto earth bond feature (Via a relay) Configurable Fully programmable controller Programmable supply priority for battery or grid Programmable multiple operation modes: on-grid/off-grid & UPS Configurable battery charging – current/voltage based on the application Configurable AC / solar / generator charger priority by LCD setting Secure Overload/over-temperature/short-circuit protection Smart battery charger design for optimized battery protection Limiting function installed to prevent excess power overflow to grid MODEL SUNSYNK MAX BATTERY INPUT DATA Battery Type Lead-acid or Lithium-ion Battery Voltage Range 43~60V Max. Charging Current 275A Max. Discharging Current 300A Charging Curve 3 Stages/Equalisation External Temperature Sensor Yes Charging Strategy for Li-Ion Battery Self-Adaptation to BMS PV STRING INPUT DATA Max. DC Input Power 18000W Max PV Input Voltage 450V MPPT Range 250V~450V Start-up Voltage 150V PV Input Current 22A 22A Max. PV Isc 26A 26A No. of MPPT / Strings Per MPPT 3 / 2 PV STRING INPUT DATA Max. On-Grid AC Power 16000W Max. Off-Grid AC Power 13000W Peak Power (off-grid) 2 times of rated power, 10 S AC Output Rated Current 65A Max AC Current 70A Max Continuous AC Passthrough 200A Frequency Range 45Hz ~55Hz Voltage Range 211V ~ 264V Grid Type Single-Phase Current Harmonic Distortion THD<3%(Linear load<1.5%) EFFICIENCY Max. Efficiency 97.60% Euro Efficiency 97.00% MPPT Efficiency 99.90% PROTECTION Integrated PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Surge protection CERTIFICATION AND STANDARDS Grid Regulation VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699:2011, XP C15-712-3:2019-05 Safety EMC / Standard IEC62109-1, IEC62109-2, EN61000-6-1, EN61000-6-3 GENERAL DATA Operating Temperature Range -25~55°C Cooling Fan Noise <30dB Communication with BMS RS485; CAN Weight 34.5kg Size 422W – 702H – 281D mm Protection Degree IP65 Installation Style Wall-mounted Warranty 5 years
