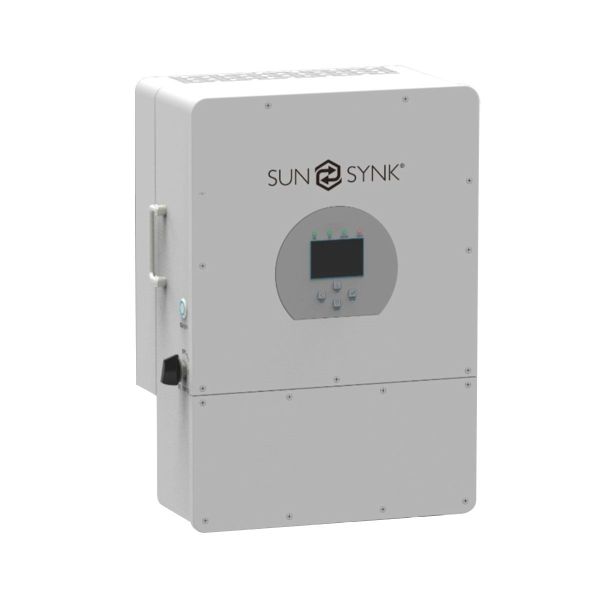

Description Interactive Easy and simple to understand LCD display Supporting Wi-Fi or GSM monitoring Visual power flow screen Built-in 2 strings for 1 MPP tracker and 1 string for 1 MPP tracker Smart settable 3-stage MPPT charging for optimised battery performance Auxiliary load function Up to 4 inverters in parallel Compatible Compatible with mains electrical grid voltages or power generators Compatible with wind turbines 230V/400V Three-phase Pure Sinewave Inverter Self-consumption and feed-in to the grid Auto restart while AC is recovering Maximum charging/discharging current of 190A (8kW), 210A (10kW), and 240A (12kW) DC and AC couple to retrofit existing solar system Compatible with a 48V low-voltage battery Configurable Fully programmable controller Programmable supply priority for battery or grid Programmable multiple operation modes: on-grid/off-grid & UPS Configurable battery charging – current/voltage based on applications by LCD setting Configurable AC / solar / generator charger priority by LCD setting 6 time periods for battery charging/discharging Secure Overload/over-temperature/short-circuit protection Smart battery charger design for optimised battery protection Limiting function installed to prevent excess power overflow to grid Isolation transformer design Applications Marine (vessel power management) Power shedding (home/office/factory) UPS (fuel-saving systems) Remote locations with solar and wind generators Building sites Telecommunication MODEL SUNSYNK-12K-SG04LP3 Product Type Hybrid Inverter Enclosure IP65 Ambient Temperature -45ºC ~ 60ºC (>45ºC derating) Protection Level Class I CHARGE MODE Battery Voltage 48V (40V~60V) Battery Current 240A (max.) AC Input Voltage 380/400V AC Input Frequency 50/60Hz AC Input Rated Current 18A Max. AC Input Current 27 (max.) Max. AC Input Power 13200W PV Input Voltage 550V (150V~800V) MPPT Input Voltage 200 V ~ 625V PV Input Current 26A 13A Max. PV Input Power 15600W Max. PV Isc 34A 17A ON-GRID MODE AC Output Voltage 380/400V AC Output Frequency 50/60Hz AC Output Rated Current 18A Max. AC Output Current 27A (max.) Max. AC Output Power 13200W AC Output Rated Power 12000W AC Output Power Factor 0.8 leading to 0.8 lagging Max. AC Isc 75A Battery Discharge Voltage 40V~60V Battery Discharge Current 240A (max.) Battery Discharge Power 12000W OFF-GRID MODE AC Output Voltage 380/400V AC Output Frequency 50/60Hz AC Output Rated Current 18A AC Output Rated Power 12000W Max. Continuous AC 48A Peak Output Power 24000W (10 seconds) Battery Discharge Voltage 40V~60V Max. Discharge Current 240A (max.) Compliance IEC61727, IEC62116, IEC600068, IEC61683, IEC/EN62109-1/2
