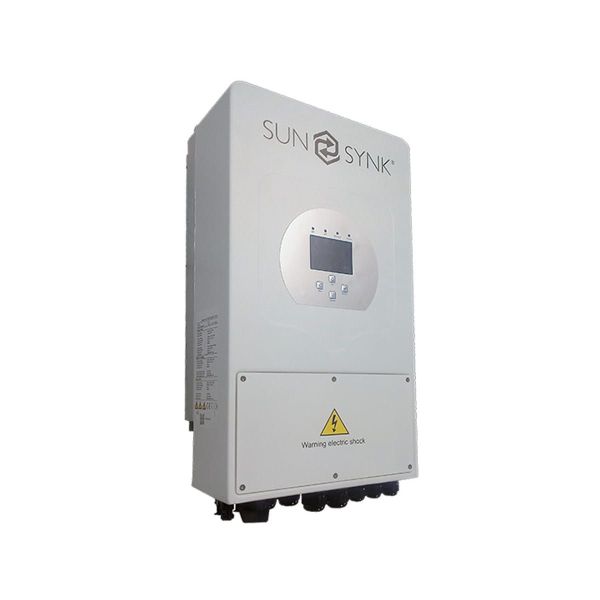

Description The Sunsynk Hybrid Inverter has many uses and is recommended for the following applications Marine (vessel power management) Power shedding (home / office / factory) UPS (fuel saving systems) Remote locations with solar and wind generators Building sites Military locations Telecommunication sites Features 220V single phase, pure sine wave inverter Self consumption & feed-in to the grid Auto re-start while AC is recovering Programmable supply priority for battery or grid Programmable multiple operation modes; on-grid / off-grid & UPS Configurable battery charging – current / voltage based on applications by LCD setting Configurable AC / solar / generator charger priority by LCD setting Compatible with mains voltage or generator power Overload / over-temperature / short-circuit protection Smart battery charger designer optimised battery protection Limit-function installed to prevent excess power overflow to grid Supporting Wi-Fi monitoring and built-in 2 strings of MPP trackers Smart settable 3-stage MPPT charging for optimised battery performance Time of use function Smart load function MODEL SUNSYNK-5.5KW BATTERY DATA Type Lead-acid or Li-Ion Battery Voltage Range (V) 40V-60V Max. Charging Current (A) 125 Amps Max. Discharging Current (A) 125 Amps AGM Charging Curve 3-Stage / Equalisation External Temperature Sensor Optional Charging for Li-Ion Battery Self-adaption to BMS PV INPUT DATA Max. DC Input Power (W) 6000W Max. DC Input Voltage (V) 500V MPPT Range (V) 125-425V Start Up Voltage (V) 150V Max. Input Current (A) 11A 11A Number of MPPT Trackers 2 Number of Strings per MPPT 1 1 Weight 20.5Kg Size (width x height x depth) 580mm x 330mm x 217mm AC OUTPUT DATA Rated AC Output & UPS 5000W Peak Power Off-Grid 10,000W (2xRated) Max AC Current ( I ) 25 Amps Output Frequency 50 / 60 Hz THD <3%(Linear Loading<1.5%) EFFICIENCY Max. Efficiency 97.6% Euro Efficiency 97% MPPT Efficiency 99.9% PROTECTION PV Arc Fault Detection PV Input lighting protection Anti-Islanding Protection PV reverse polarity protection Insulation Resistor Residual Current Monitoring Unit Output Over Current Output short circuit protection Output Over Voltage – Operating Temperature -25℃ to 60℃ Noise (db) <30 db Communication with BMS RS485: CAN
