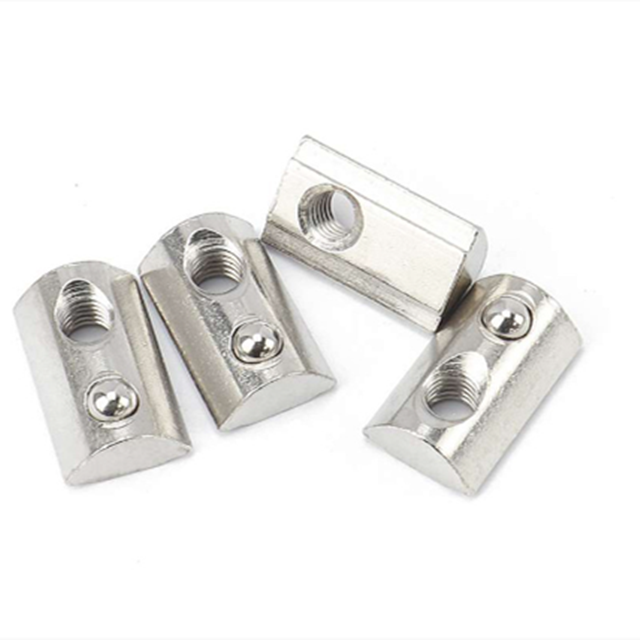

T Spring NutT spring nut, also called the elastic nut, can be placed directly at any assembly point of t slot profiles’ groove or from the cross-section, the spring ball on the back can fix the position simply. It is one of the most commonly used accessories for profile connection.Product Introduction>>DimensionsDescriptionFeaturesDPart No.T Spring Nut, 6.2 mm M420.3.03.4.02M520.3.03.5.02T Spring Nut, 8.2 mm M430.3.03.4.02M530.3.03.5.02M630.3.03.6.02M830.3.03.8.02T Spring Nut, 8.2 mm M440.3.03.4.02M540.3.03.5.02M640.3.03.6.02M840.3.03.8.02T Spring Nut, 10.2 mm M400.3.03.4.02.02M500.3.03.5.02.02M600.3.03.6.02.02M800.3.03.8.02.02 InstallationThe half round nut can be installed easily by drop into the slot from the front-side, the spring leaf on the back can fix the nut at any position of profile.Compatible fastener for 6.2 mm, 8.2 mm, and 10.2 mm European standard aluminum extrusion profiles. AdvantageDifferent from pre-set nuts, the half round nut could be inserted into a closed frame afterward. It is much easier for users to attach to a completed structure.Assembling and disassembling can become much efficient with the roll-in spring nuts.Nickle-plated surface treatment meets your requirements for environmental protection.About this itemRoll in half round nut can be directly into the aluminum slot hole in any of the assembly point.Back spring ball can be fixed its position which make installation very simple and reliable.Profile connection is one of the most use of accessories.Spring ball loaded makes these T slot nuts sit and stay where you want them,and don’t slide around while your trying to screw into them.It was so much easier than fiddling with the stock T nuts that refuse to lock in place correctly.You can insert and remove these T slot nuts easily.Package and ShipmentRegular profile – PE film inside and pack with pallet.Profile cut to size – 5ply corrugated carton with PE film inside.Accessories – carton with plastic container inside.Customized package is available.
