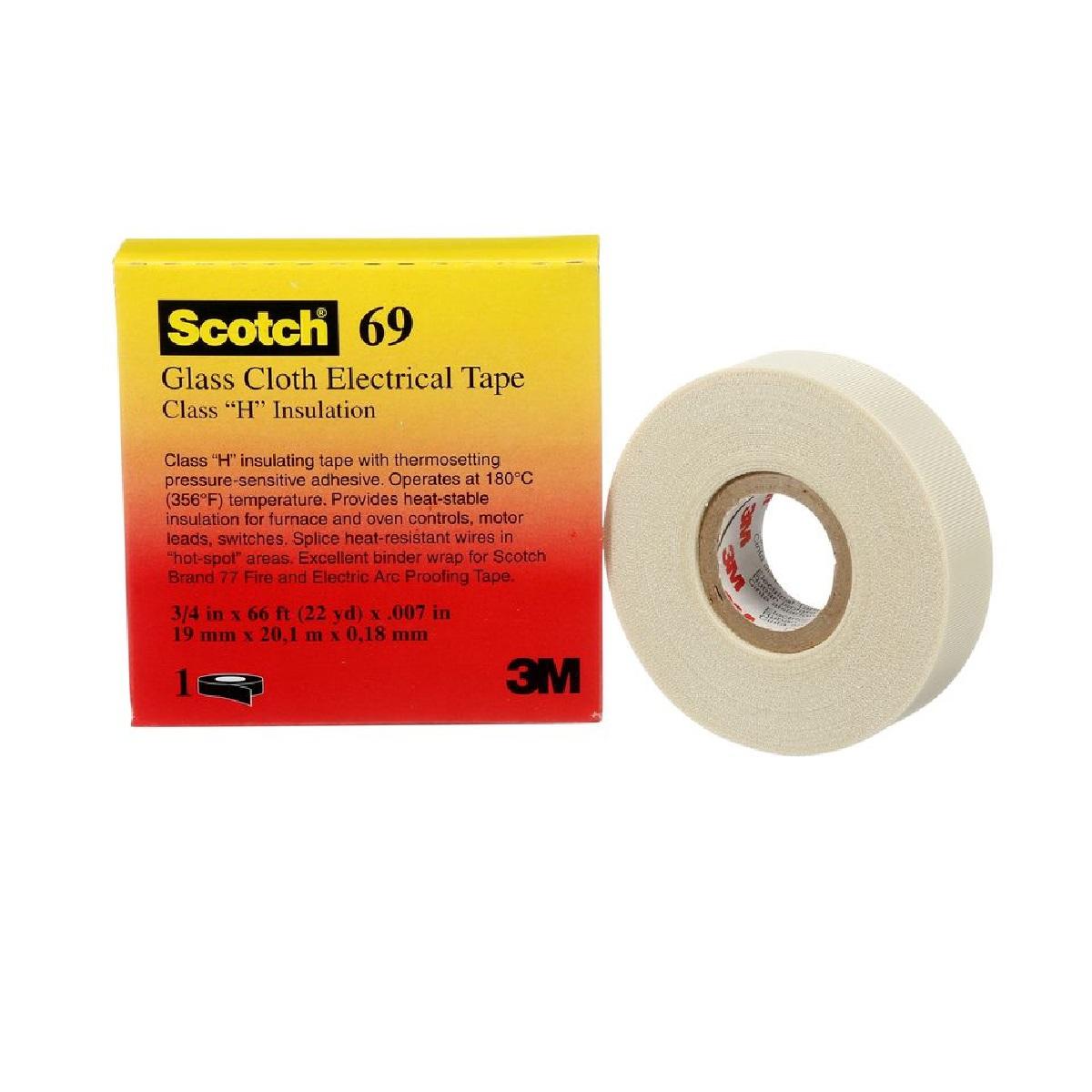

Electrical insulating tape 3M Scotch 69 General Purpose, Glass Cloth, white, 12mm*33m
$29.98
$49.77
Description 3M Scotch 69 Premium Glass Cloth is designed to operate in applications requiring excellent mechanical strength and resistance to high temperatures up to 200_C and conforming to Military Specification No. MIL-I-19166C. The thermosetting adhesive provides an increased bond once applied in areas of high ambient temperatures. It is edge-tear resistant conformable with a high-temperature flame resistant adhesive. Ideal for use as a coil cover, anchor, for banding and core, layer and crossover insulation. Printable. Recommended for use with Scotch® Electric Arc-Proofing Tape 77. UL Recognized 200°C. • Colour available: White • Backing (Material Type): Glass Cloth • Breaking Strength: 314 N/10mm • Elongation: 5% • Adhesion: 4.4 N/10mm • Dielectric Strength: 3000V • Temperature Range: From 0 up to 200°C • Base thickness: 0.127 mm • Roll width: 12 mm • Roll length: 33 m Download technical datasheet 3M Scotch 69
