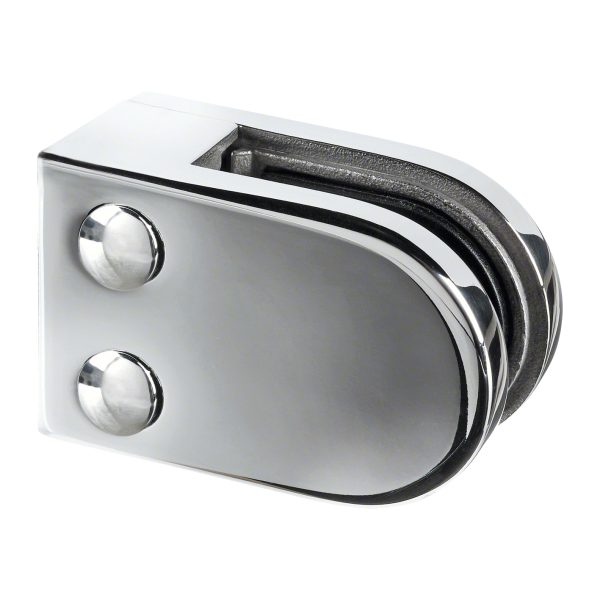

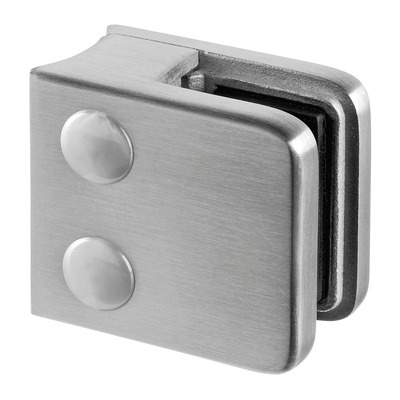

Model 22 Flat Base Matt Chrome 6 – 10mm Glass

Q-Railing Glass Balustrade Clamp suitable for 6 – 10mm Glass. Flat back for square tube or wall. Suitable for interior use only. Gaskets included, please select glass thickness for correct gaskets. Matt Chrome. Complies fully with Safety Standard DIN/EN 12600. Safety pin extra if required. (see related products).Mounting screws not included.Deduct 40mm off the opening width for the glass size. A 12mm hole is recommended if using a safety pin 28mm from the edge of the glass to the centre of the hole.Click the magnifying logo to view drawings in detail.Dimensions: 45mm x 63mm Finish: Matt Chrome
