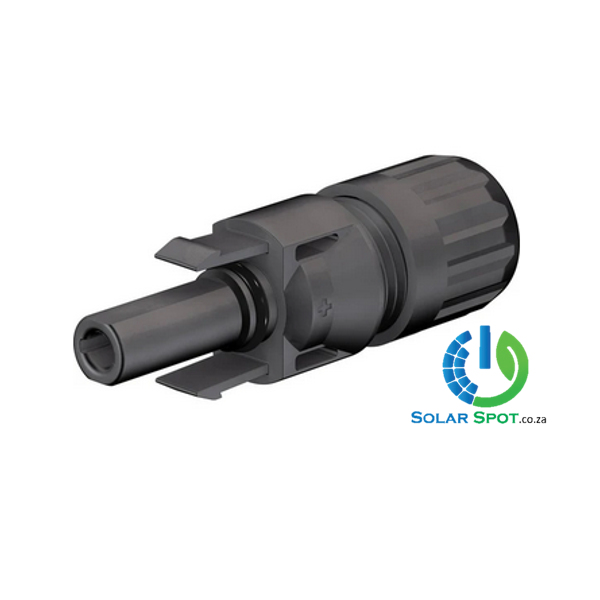

Staubli PV-KBT4/6II-UR Female solar connector MC4

Multi-Contact MC-4 Inline Male cable coupler has voltage rating of 1000-Volt DC/600-Volt DC and current rating of 30-Amps. Coupler with tin-plated copper alloy contact, accepts a wire of size 4 – 6-Sq-mm. It has IP67/IP68 /IP2X degree of protection to ensure superior protection against the intrusion for solid objects and liquids. This 5.5 – 9 mm OD coupler with snap-in locking withstands temperature rating of -40 to 75 deg C. Coupler is UL listed and CSA certified. Connector Type: Plug Max Operating Temperature: 90degrees Celcius Min Operating temperature: -40degrees Celcius Test Current: 17A Voltage Rating: 1000V IP rating: IP67
