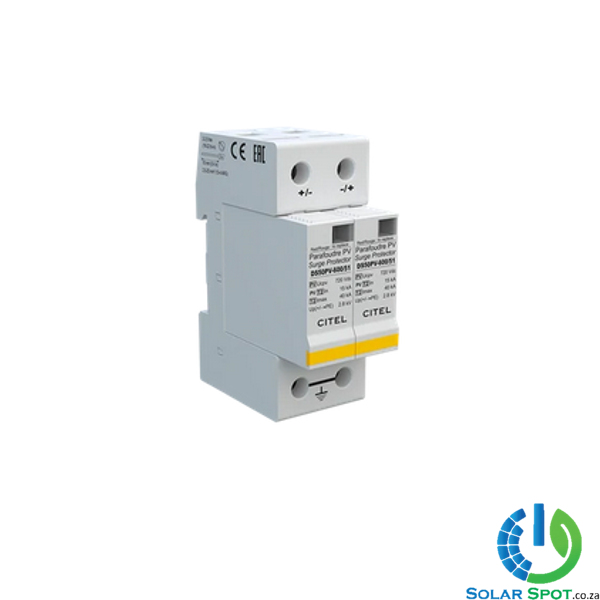

Citel DS50PVS-600/51 SPD Photovoltaic, Type 2, 600Vdc, 15 kA

DS50PV/51 are type 2 surge protectors are designed to protect against lightning surge voltages in photovoltaic power supply network. Based on the use of specific varistors, providing a protection in common mode or common and differential mode. SPD type 2 Network PV network 600V DC Nominal PV voltage 600V DC Max. PV operating voltage Max. PV operating voltage Residual Current < 0.1 mA PV Permanent Operating current < 0.1 mA Follow current None Nominal discharge current 15 kA Max. discharge current 40 kA Total Maximum discharge current 60 kA Current withstand short circuit PV 15000 A Connection mode(s) /-/PE Protection mode(s) Common mode Protection level /PE (-/PE) 2.8 kV
